Watermark, Irvine


Back ] Home ] Up ]




Col. Reinforcing
Ramped Slab
Bonded Walkway A
Bonded Walkway B
Grade Beam
Plan View
Anchor Pockets
Concreted

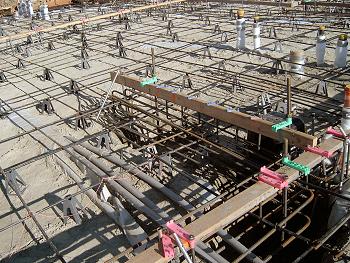

This 4 story luxury apartment complex by Sares-Regis required 12" thick mat slabs over large areas which dictated very close control of the concrete placement.  In addition, due to a high concentration of water soluble sulfates in the soil, the post-tensioning anchors were specified to be completely insulated from the concrete using plastic jacketed components.  Engineered by Post-Tension Design; Upland, California.
