Lauterbauch, Venice


Home ] Up ] Next ]

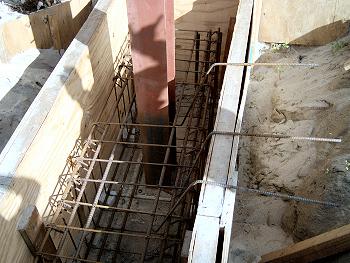

Col. Reinforcement
Limited Site
Dowels to Slab A
Dowels to Slab B
Edge Beam
Slab Tendons


Of interest about this project is the use of spacers on the dowels to provide relief from cracking around the previously cast column footings from concrete shrinkage during the slab's cure and tendon stressing.  This Venice, California site is typical of those encountered when building new homes in old neighborhoods.  Engineered by Post-Tension Design; Upland, California.
