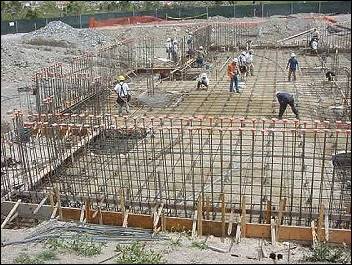

Images of the construction sequence of a subterranean 16" thick, two-way post-tensioned slab in Orange County, California. A project by Post-Tension Design; Upland, California.

This project is a 16" thick, subterranean post-tensioned mat  foundation for golf cart storage under a club house designed to not only carry the rather high structural loads from the building above but to also act as a cantilever footing for its lower level concrete block retaining wall.  Founded in medium to low density expansive soil, the two-way post-tensioned, 0.6" dia. tendons allow the slab to distribute all of the superimposed loads over its entire area.
